Battery (Li-ion) Powered Motor
RM25 LE SERIES
Rechargeable Motor for Roller and Zebra Shades

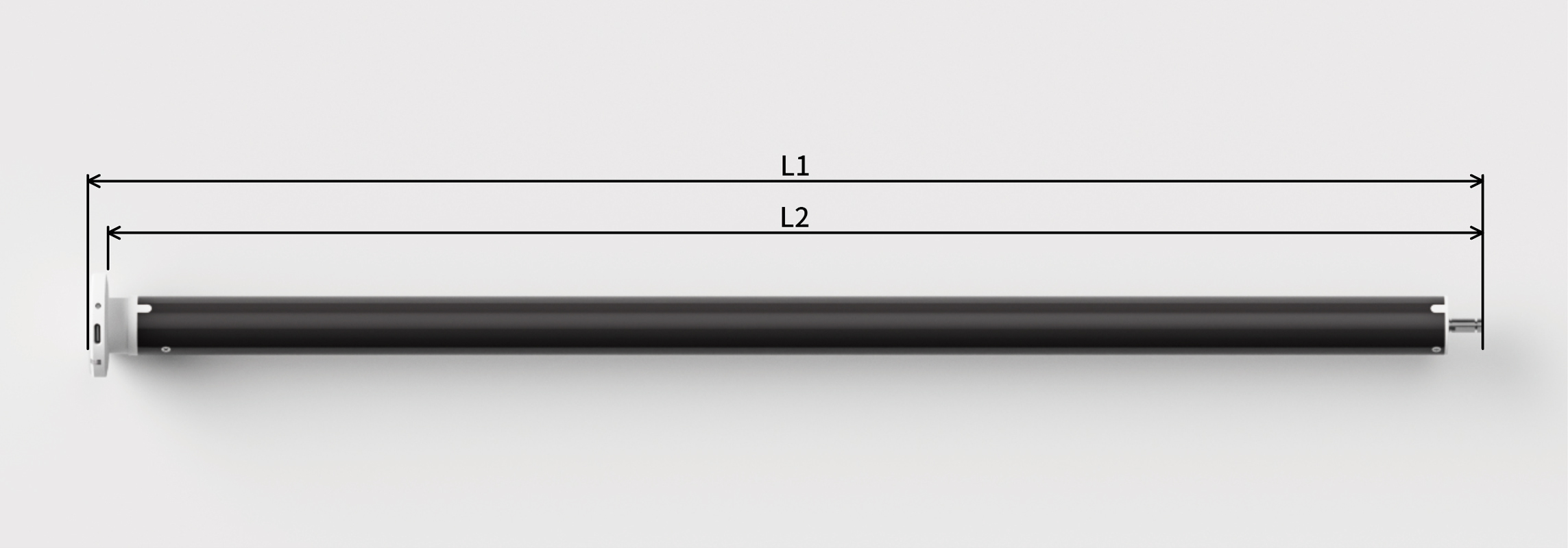

Dimensional Drawing · Unit: mm

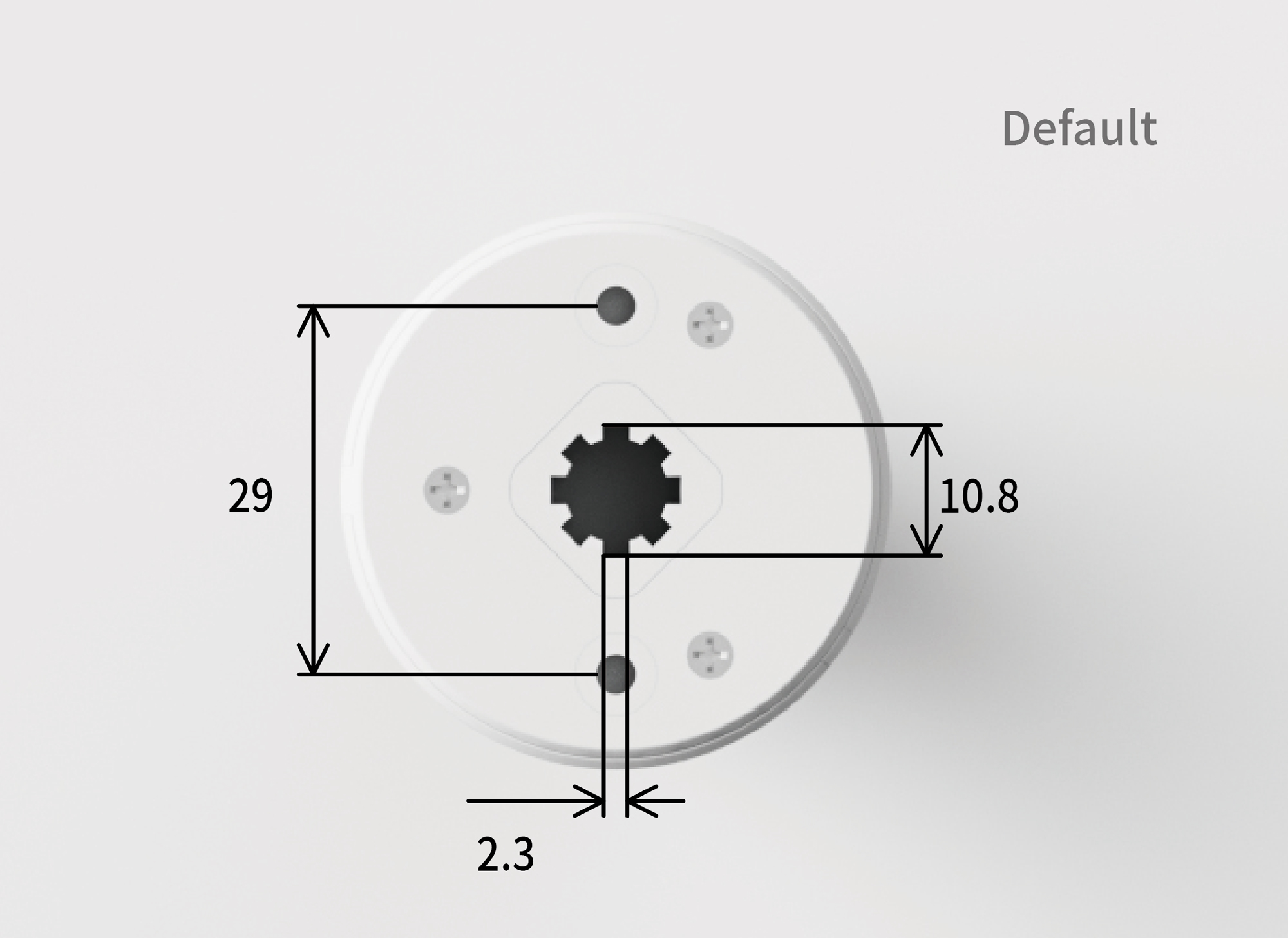

Default

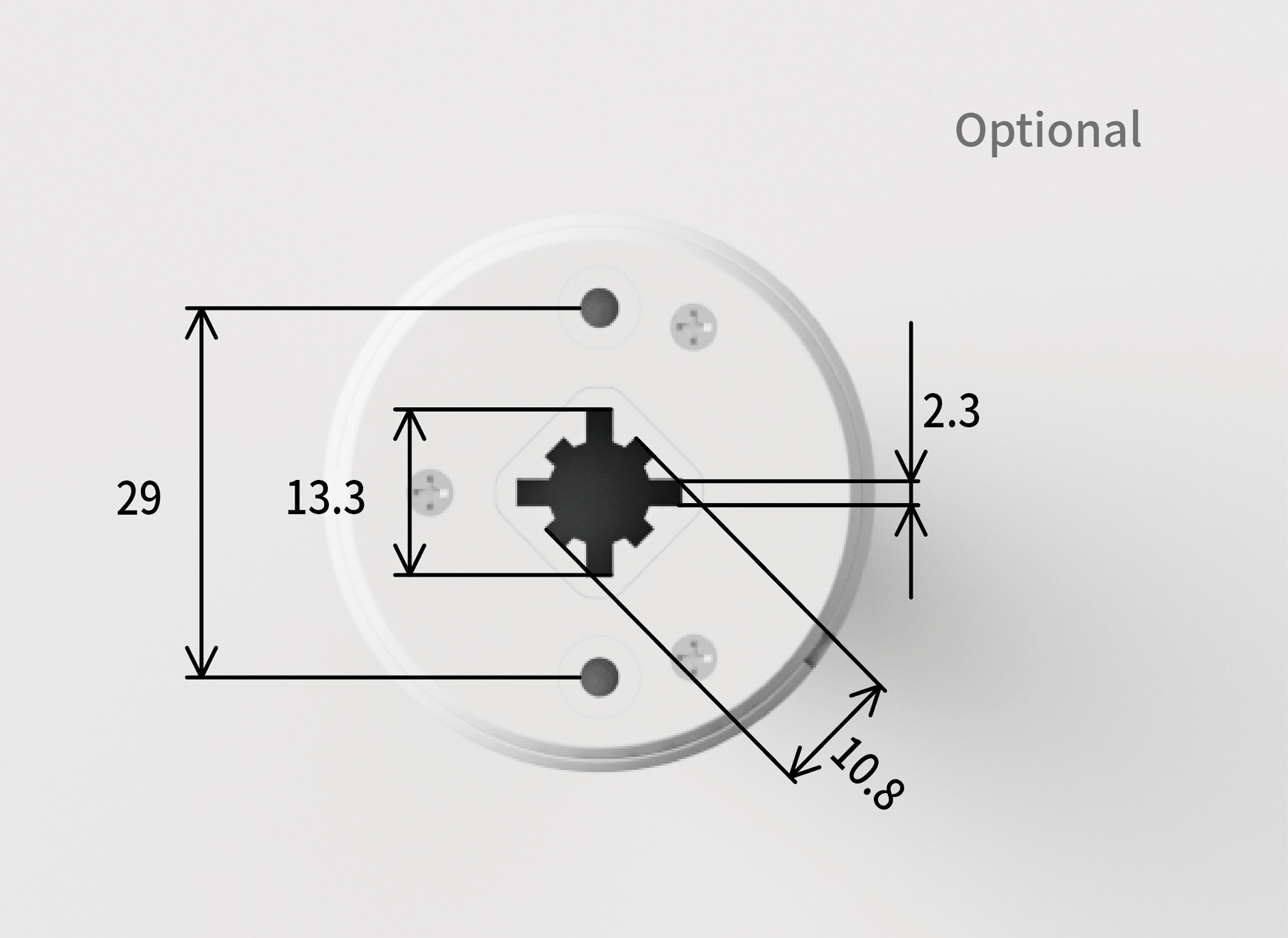

Optional
Regular Features
1Anti-static
2Type-C
3Fast charging
4Power bank
5Solar panel
6Adjustable speed
7Sync running
8Low battery protection
9Soft start and stop
10Favourite position
11Stall protection
12Power-off limits position memory
13Tilting function
14Low power consumption
Specifications
| Parameter | Rated Torque | Battery | Rated Current | Rated Power | Rated Speed | Running Noise | Running Time | Length L1/L2 | Protection Grade | Hidden Antenna | Feature | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RM25-LAQ-W1-1.1/20 | 1.1 Nm | 2-Cell | 1A | 7.5W | 20/28 rpm | 32 dB | 6 min | 485–577 mm | IP20 | ✓ | Low Sound | RF |
| RM25-LAM-W1-1.1/20 | 1.1 Nm | 2-Cell | 1A | 7.5W | 20/28 rpm | 32 dB | 6 min | 485–577 mm | IP20 | — | Low Sound | RF + Matter |
| RM25-LEZY-W1-1.1/20 | 1.1 Nm | 2-Cell | 0.75A | 6.3W | 20/28 rpm | 36 dB | 6 min | 485–577 mm | IP20 | — | — | RF + Zigbee |
Accessories Information

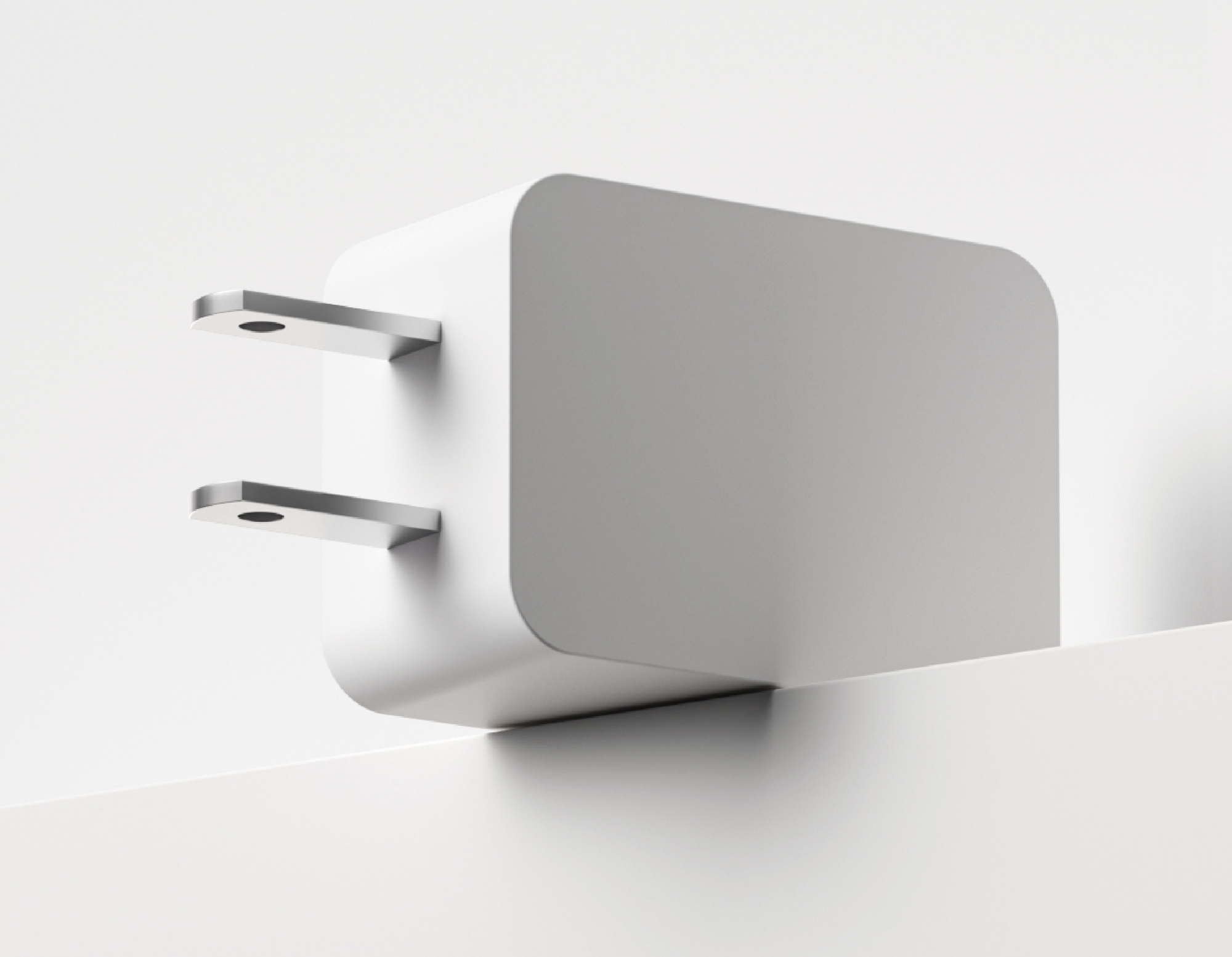

Charging Cube DC5V
REP118A

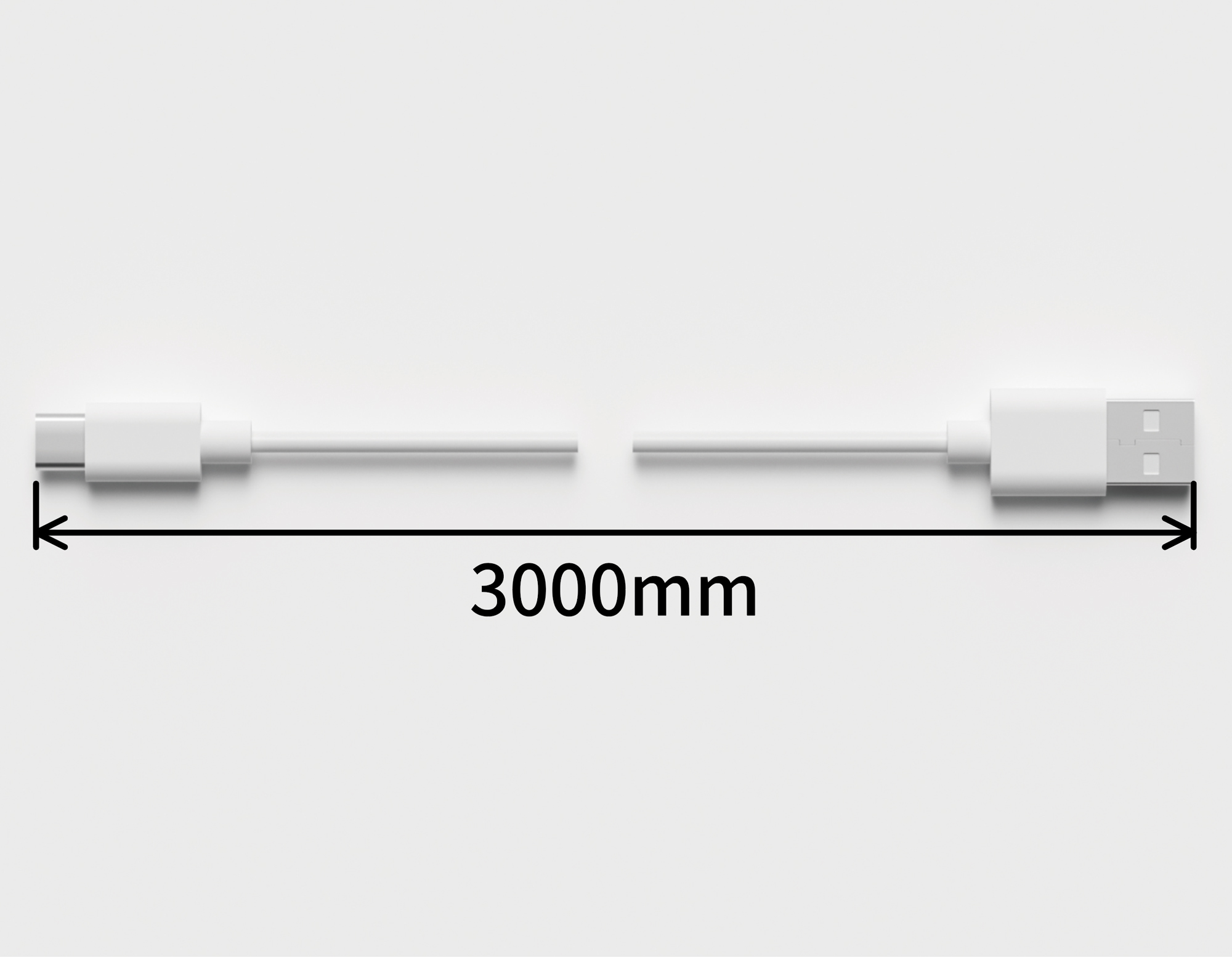

Charging Cable
CM-182A

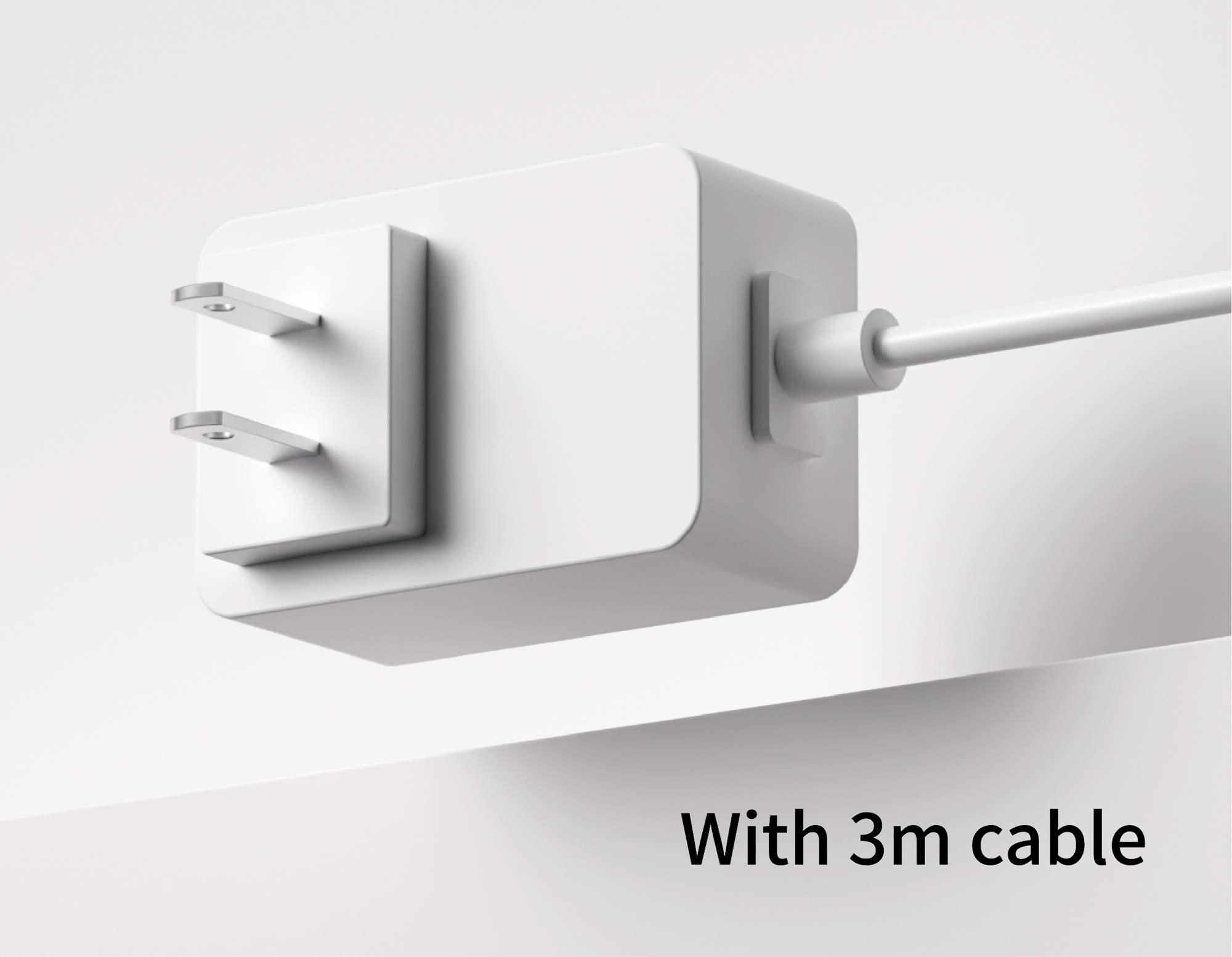

Fast Charger
REP134

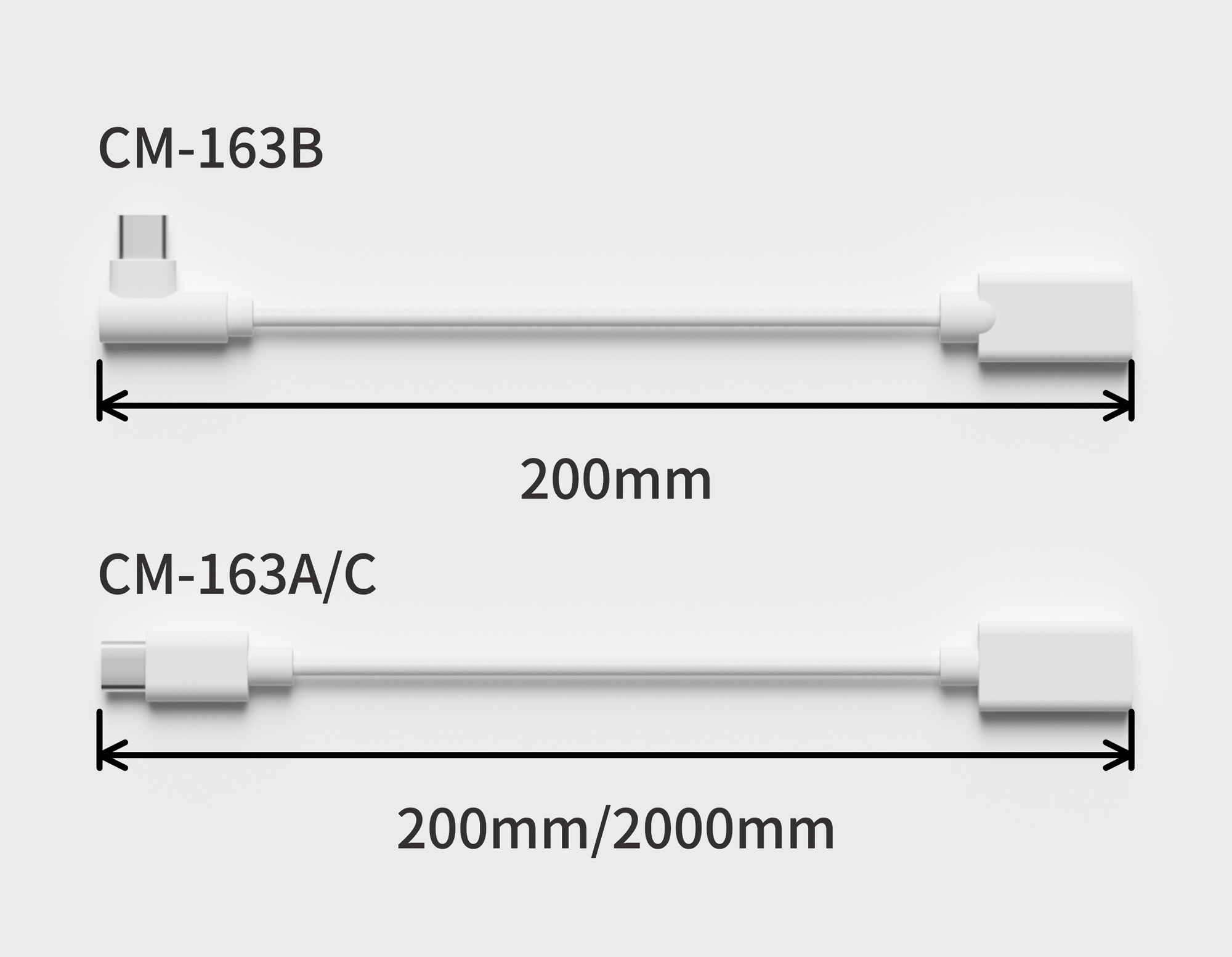

Extension Cable
CM-163A/B/C
Solar Panel
REP130
Low Voltage Powered Motor
RM25 OE SERIES
Hardwired Motor for Roller and Zebra Shades

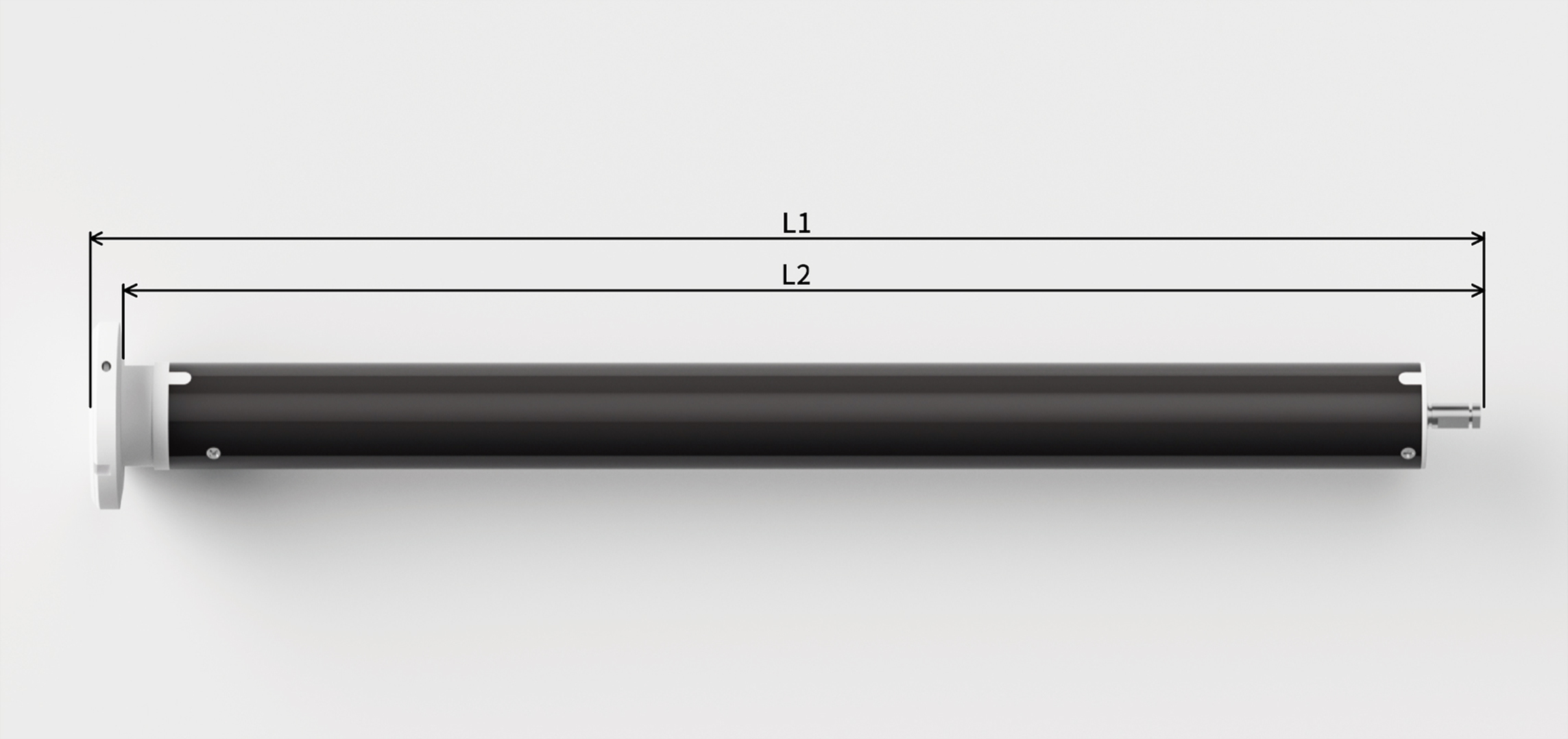

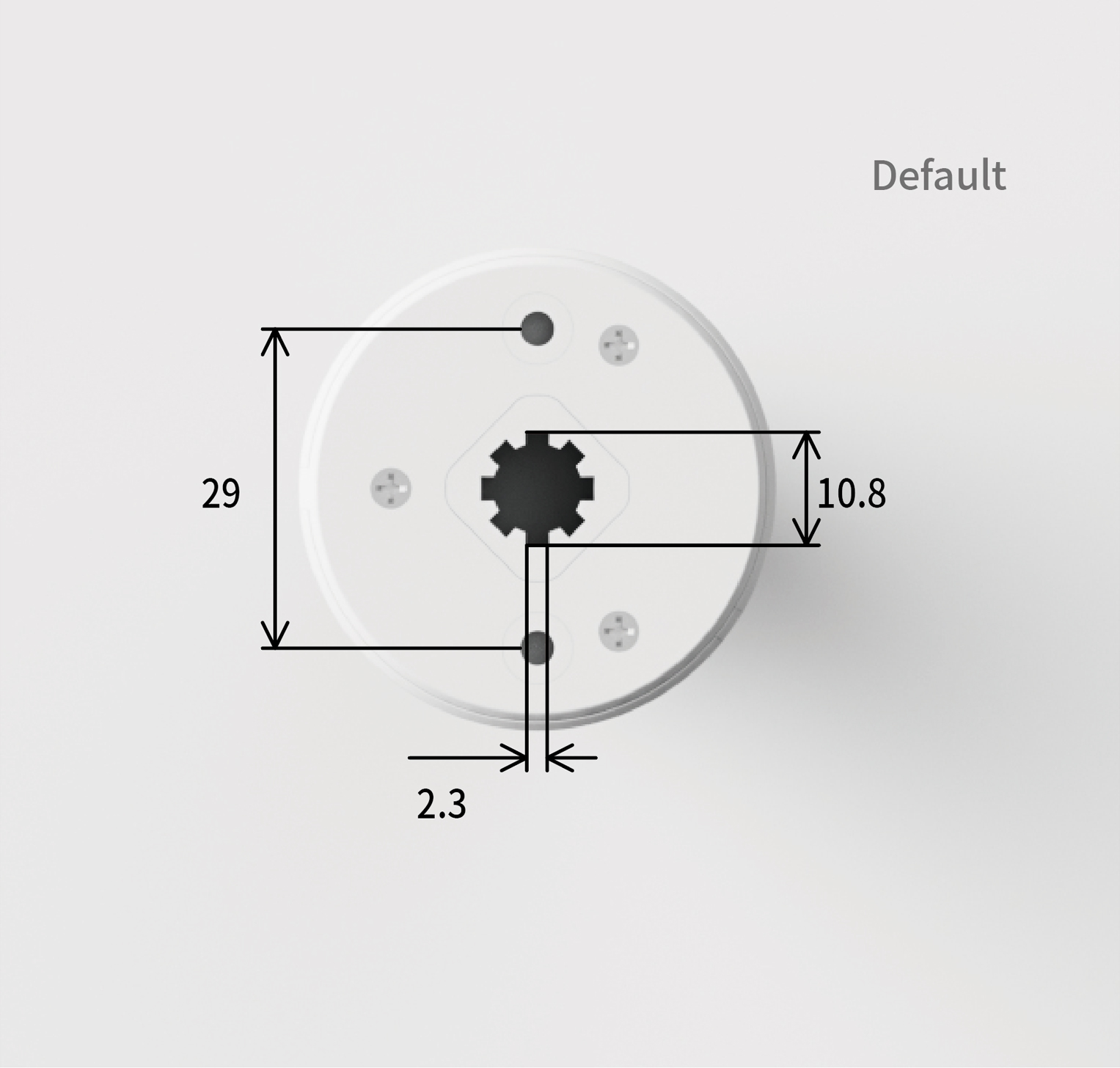

Dimensional Drawing · Unit: mm

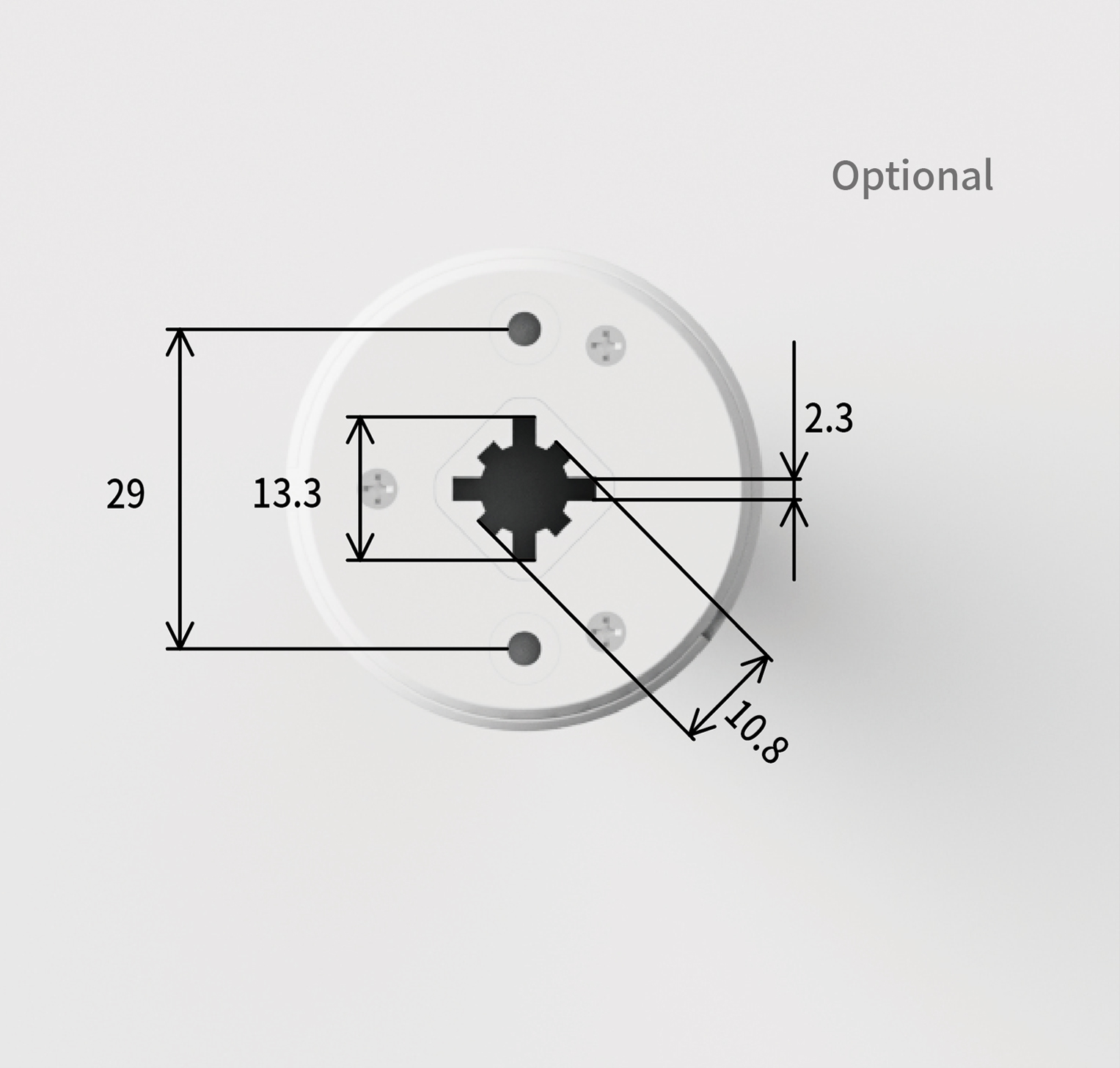

Default
Optional
Regular Features
1Anti-static
2Adjustable speed
3Sync running
4Soft start and stop
5Tilting function
6Favourite position
7Obstacle protection
8Low start-up voltage
9Power-off limits position memory
Specifications
| Parameter | Rated Torque | Rated Voltage | Rated Current | Rated Power | Rated Speed | Running Noise | Running Time | Length L1/L2 | Protection Grade | Hidden Antenna | Feature | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RM25-OA-W1-1.1/20 | 1.1 Nm | 24V | 0.35A | 8.4W | 20/28 rpm | 36 dB | 6 min | 325/317 mm | IP20 | ✓ | — | RF |
Manuals
Accessories Information

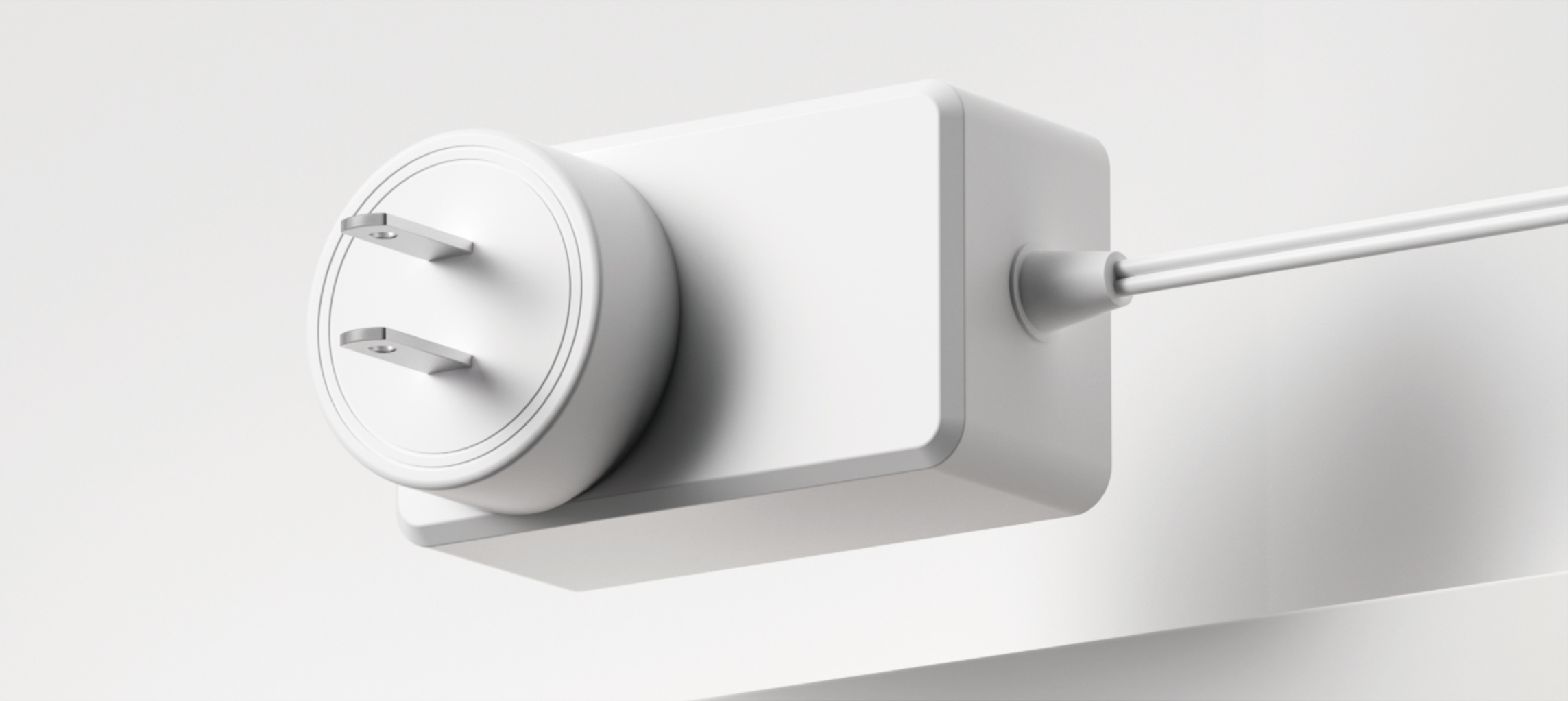

Adapter
REP114

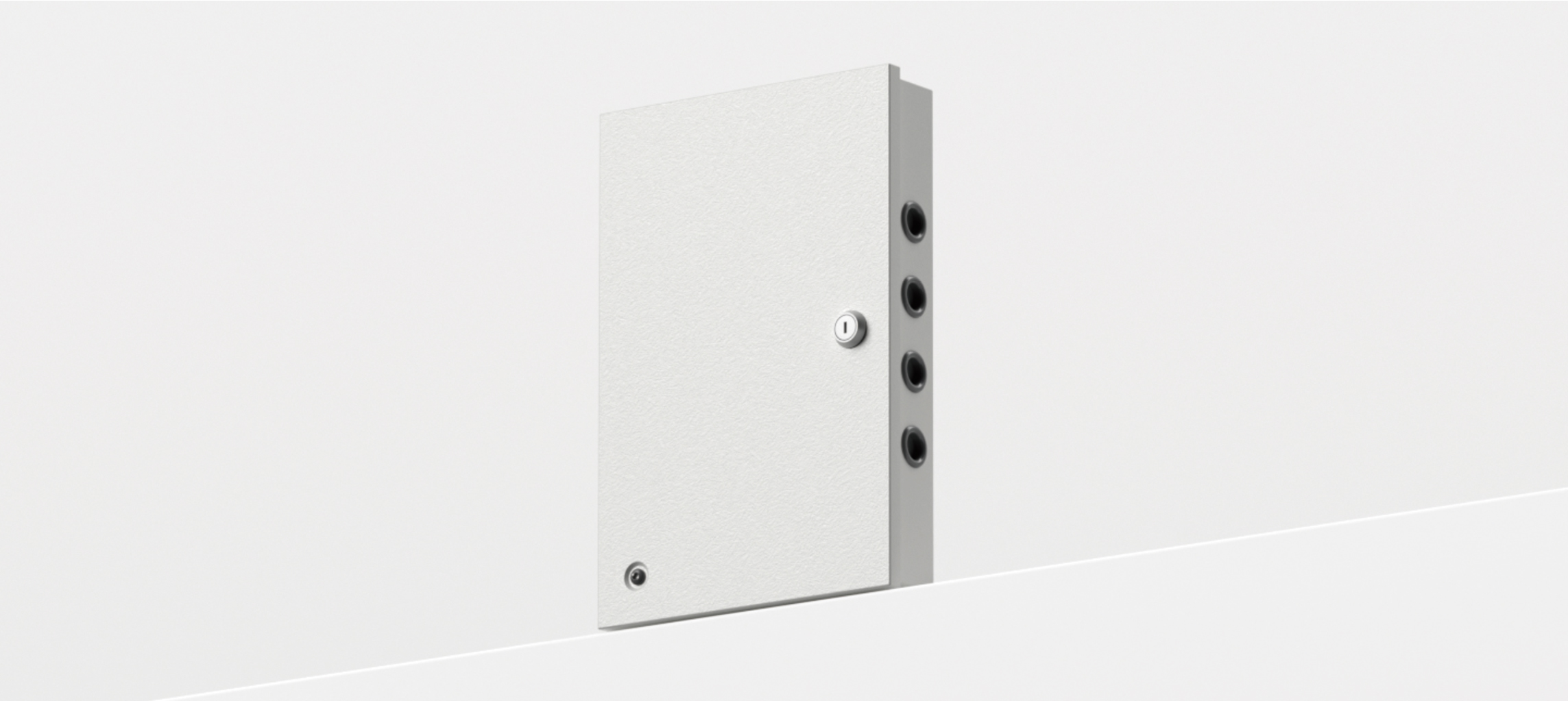

Power Panel
BLD-480W-12V/24V

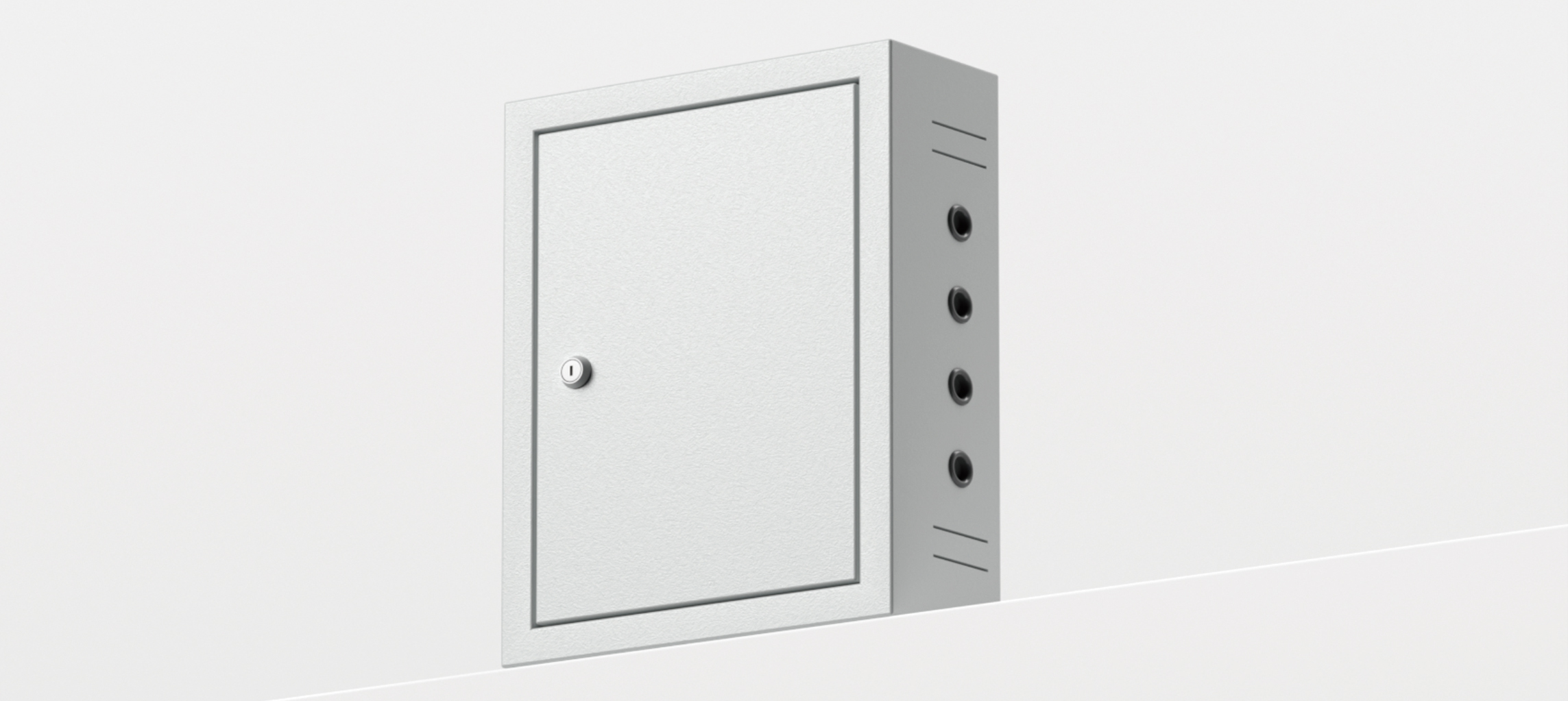

Power Panel
LRS-450-24
DC Powered Tilt and Cord Lift Motor
RV24 SERIES
Motor for Venetian & Honeycomb Shades

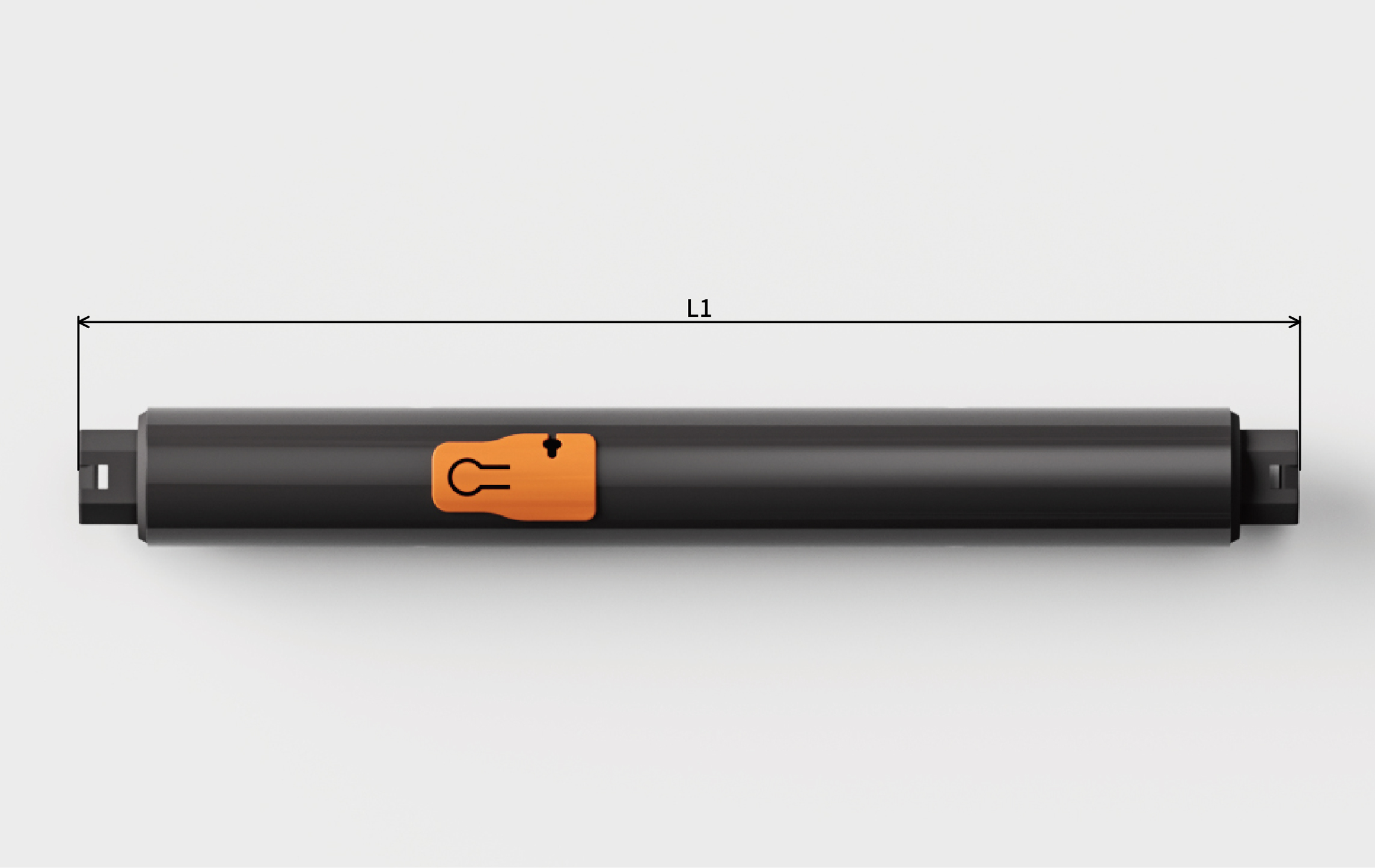

Dimensional Drawing · Unit: mm
Regular Features
1Soft start and stop
2Sync running
3Adjustable speed
4Tilting function
5Favourite position
6Stall protection
7Electronic limit
8Power-off limits position memory
Specifications
| Parameter | Application | Rated Torque | Rated Voltage | Rated Current | Rated Power | Rated Speed | Running Noise | Running Time | Length L1 | Protection Grade | Power Adapter | Battery Wand | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RV24-OE/L-D3-0.8/30 | Venetian & Honeycomb | 0.8 Nm | 12V | 0.8A | 9.6W | 22/30 rpm | 36 dB | 6 min | 207 mm | IP40 | ✓ | ✓ | RF |
Manuals
Accessories Information

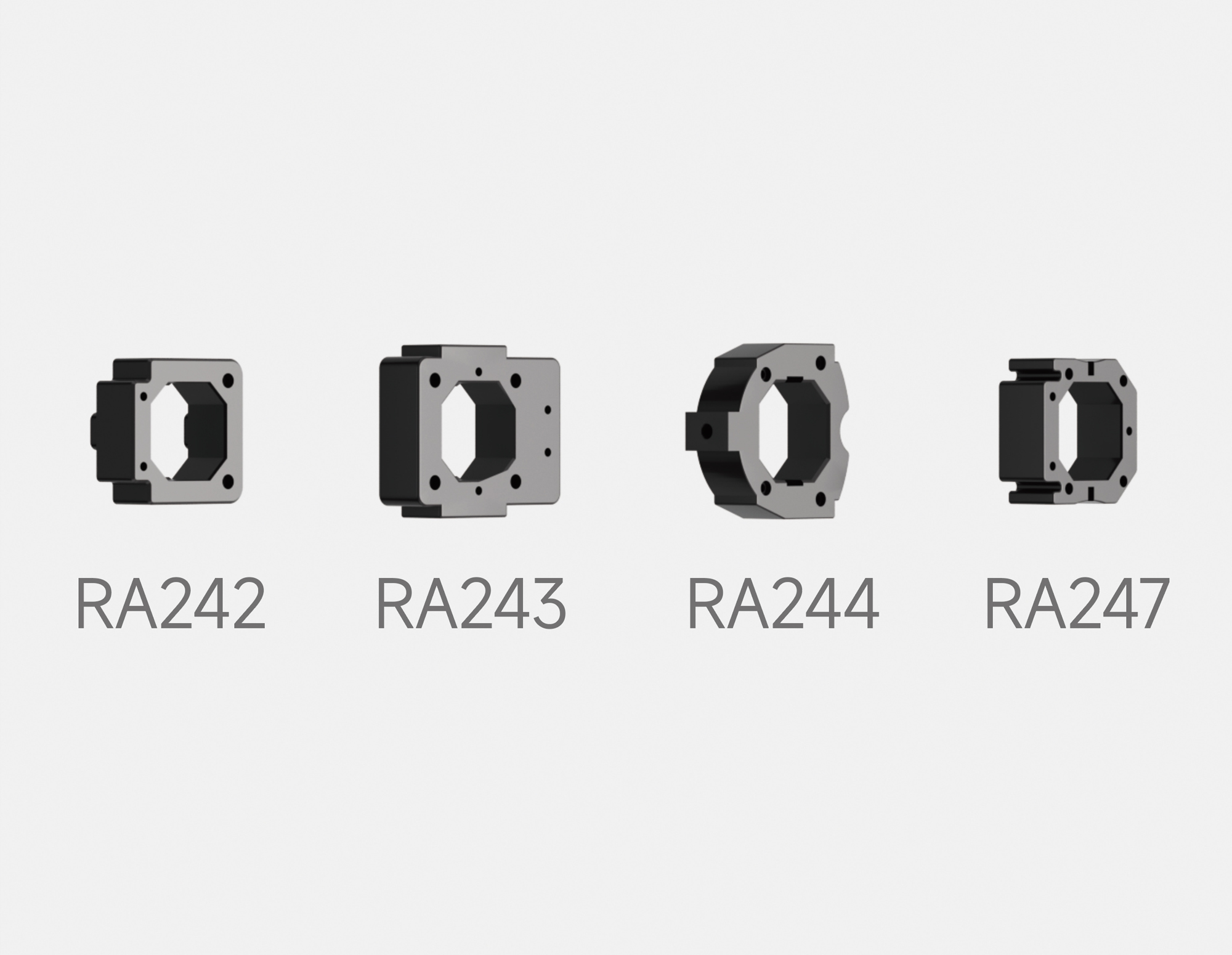

Motor Bracket
RA242/243/244/247

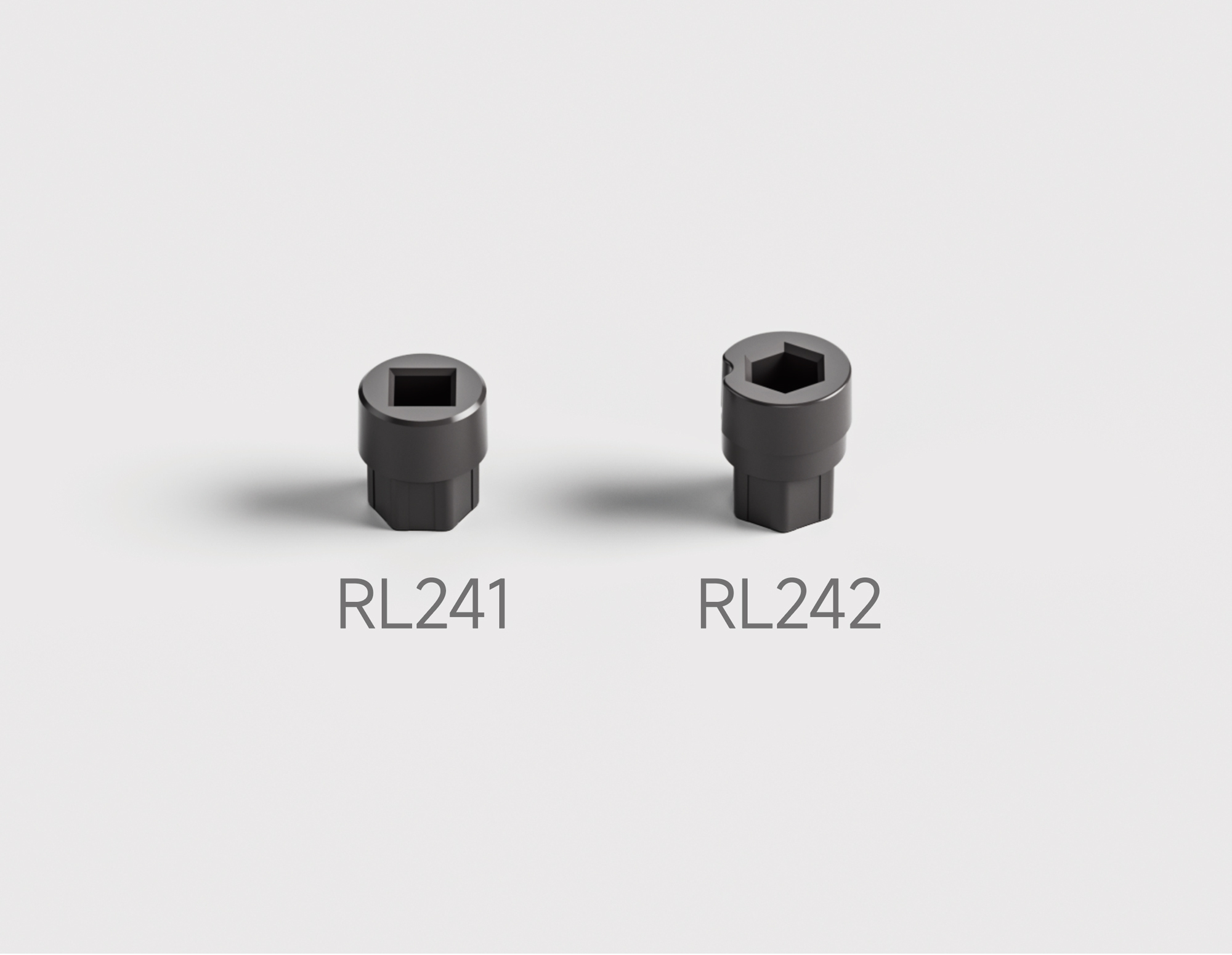

Output Shaft Head
RL241/242

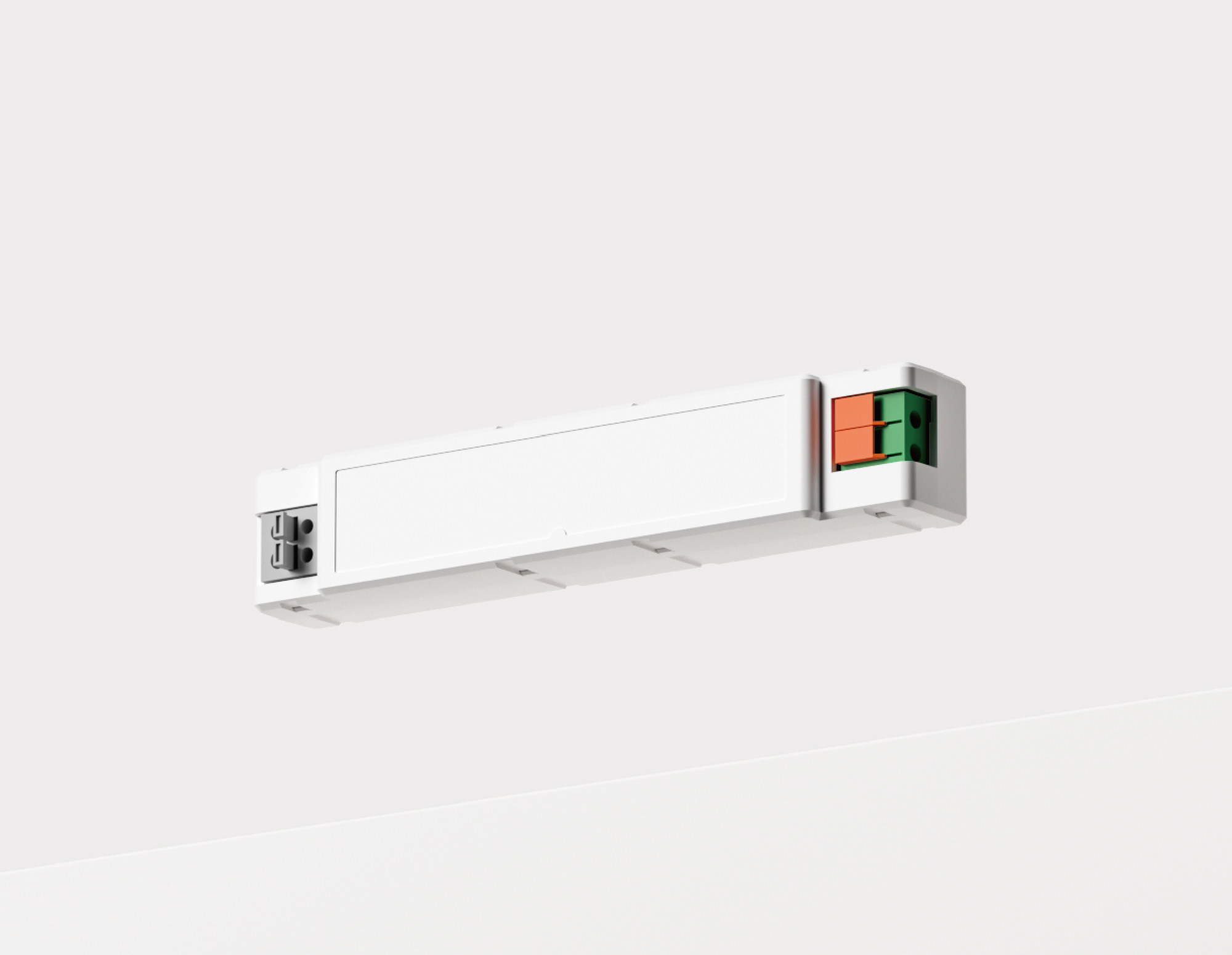

External Adapter
REP101
Battery Wand
REP110A

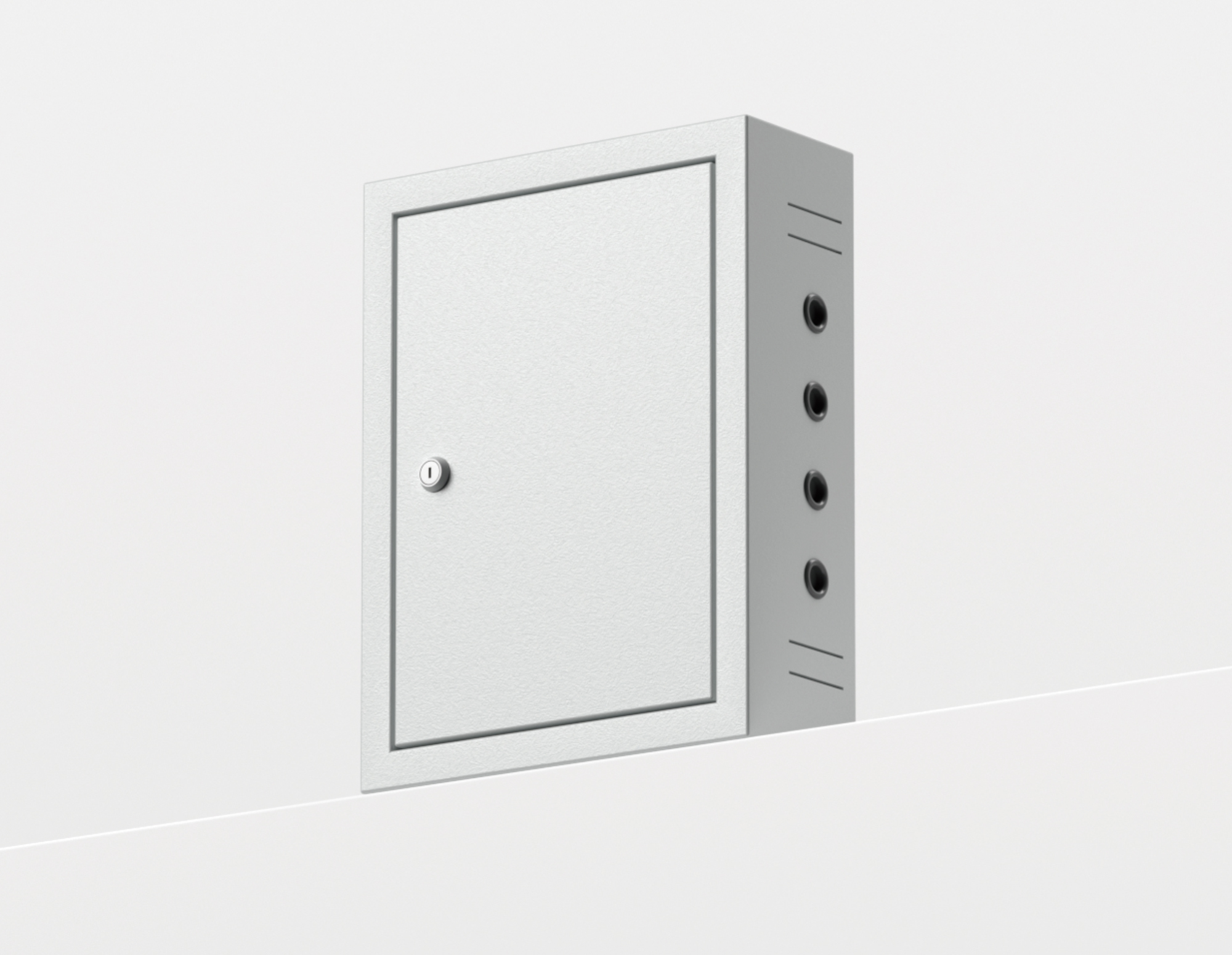

Power Panel
BLD-480W-12V
Controls & Power
Other Accessories
Remote controllers, smart hubs, solar panels and battery wands
Remote Controller
RE315 · 15-Channel Emitter
Radio Frequency
Rolling Code 433.92 MHz
Operating Temp.
−10°C ~ 55°C
Control Distance
> 120 Meters
Humidity Range
10%–90% RH (non-condensing)
Dimension
139 × 37 × 15 mm
Input Voltage
DC 3V
Smart Controller / Hub
RE500 · Smart Controller
Type
Smart Hub / Bridge
Compatibility
Matter, Zigbee, RF

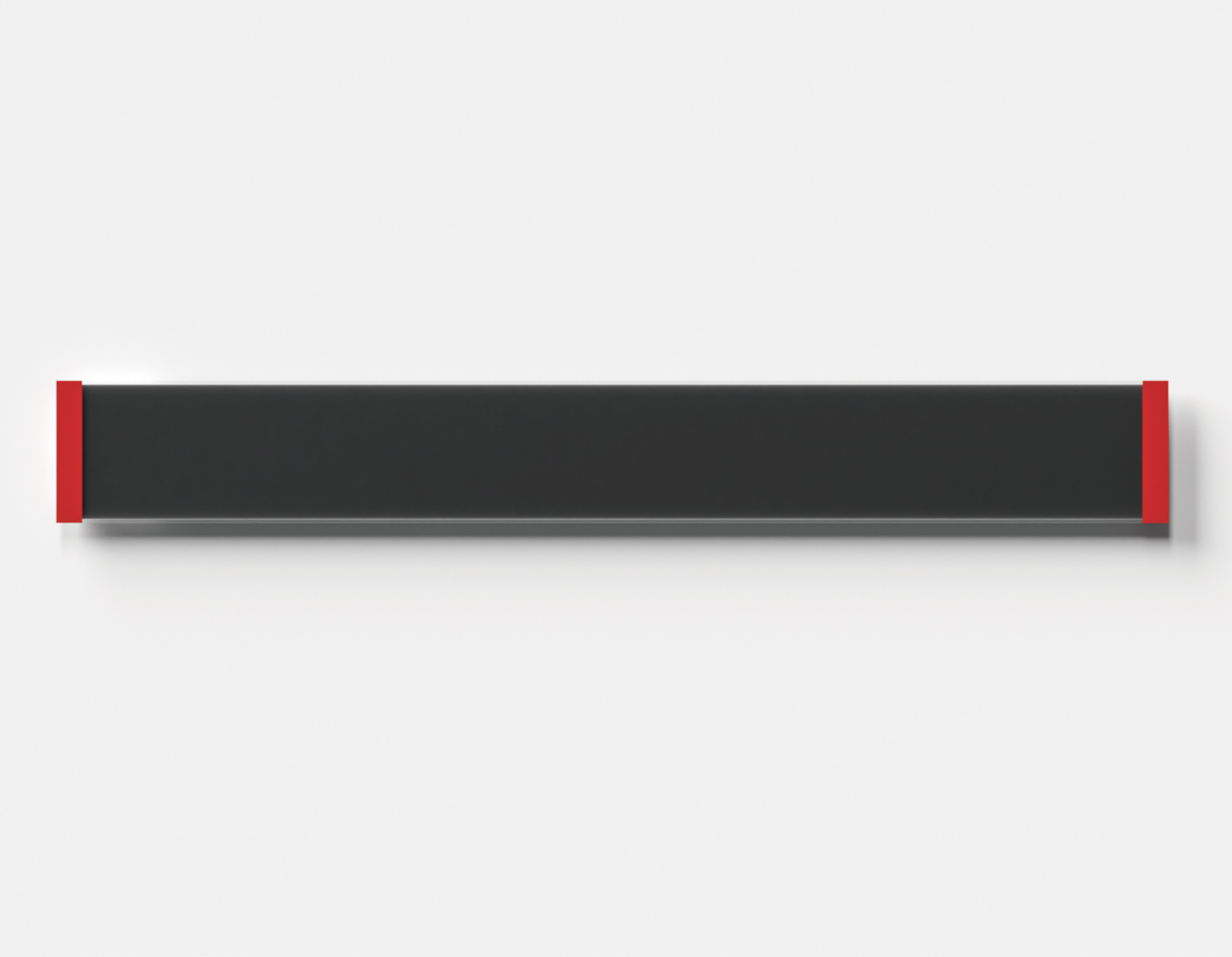

Solar Panel
REP130 · Indoor Solar Panel
Output Voltage
5.5V
Output Power
4W
Dimension
430 × 55 × 11 mm
Working Temp.
−20°C ~ +60°C
For
RM25/28/35/45 LE + REP140

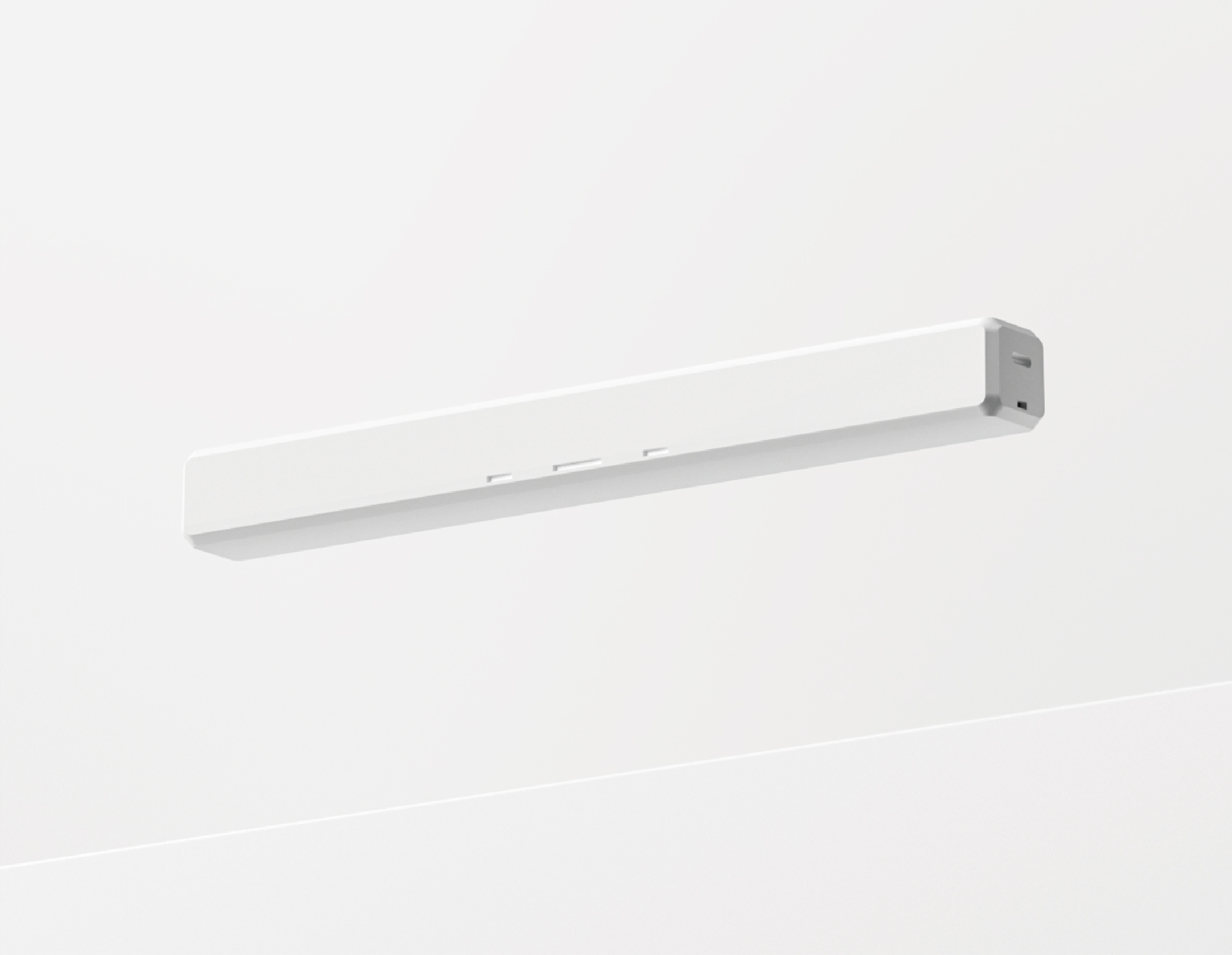

Battery Wand
REP110A · Rechargeable Battery Wand
Output
12V / 2.6A
Capacity
2550 mAh
Dimension
225 × 27.5 × 27.5 mm
Input
5V/2A · 12.6V/0.5A
For
All Praesto DC 12V Motors
